Discontinued

Smart G2 Powerstage 4S Surface Bundle: 2S 5000mAh LiPo Battery (2) / S2200 G2 Charger

Item No. SPMXG2PS4
4.5 out of 5 Customer Rating

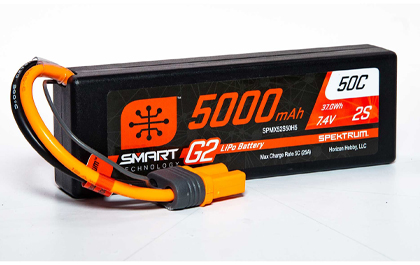

SPEKTRUM SMART G2 BATTERY

SPEKTRUM SMART G2 BATTERY

Drivers enjoy even more Smart advantages when using Spektrum™ Smart G2 50C LiPo batteries to power their vehicles. "Generation 2" features make these LiPo packs — featuring a 50C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.

For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.

Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries. Learn more about Smart Technology here: www.spektrumsmart.com


Key Features:
  • Simpler and safer to use
  • Powerful 50C continuous discharge rating to deliver high performance and longevity
  • Balance charge through the IC5® connector data wire — with only one connection, no balance lead required
  • Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
  • Integrated microchip stores unique parameters for each battery
  • IC5® connectors are also compatible with EC5™ styles

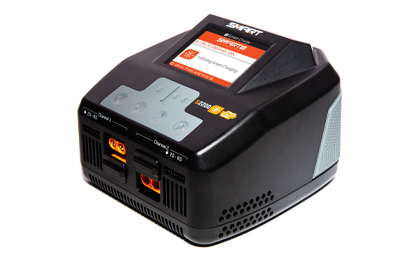

SPEKTRUM SMART CHARGER

SPEKTRUM SMART CHARGER

With up to 200W power per channel or 380W on one channel for fast charging, plus the ability to charge batteries on either the IC3® or IC5® integrated output ports, the S2200 charger delivers a versatile and truly hassle-free charging experience. The S2200 charger works with virtually any RC battery and is backwards compatible with EC3™ and EC5™ connectors. Use it together with Smart G1 or G2 batteries and you'll be amazed by its incredible functionality and performance.

The S2200 Smart G2 AC Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the charge lead is connected. A clock on the charger's screen counts down the time until your Smart battery is fully charged and ready to use.

Balancing Smart G2 batteries is just as simple. The S2200 charger will balance your Smart G2 LiPo packs through the same, single IC connection used for charging. No separate, confusing balance leads are required.

The S2200 Smart G2 AC Charger's updated, improved user interface features fresh, intuitive menus, icons, and navigation tools. Its clear, easily understandable indicators of Smart battery history and performance provide the information you need to make the best decisions about your batteries when putting gear together for a day at the field or track.

USB input and output ports enable you to charge secondary devices and to update the charger's firmware so you always have the latest version. The S2200 Smart G2 AC Charger also includes an ON/OFF switch, cooling fan, detachable power cord, and sleek case with rubber grips that fits perfectly on your workbench and in your pit or field bag.



Spektrum Smart G2 Family



PRODUCT SPECS

Amp Meter
Yes
Application
Surface
Auto Storage
Yes
Battery Temperature Monitoring
Yes
Battery Type
Smart, Non Smart
Charge Protection Circuitry
Yes
Connector Type
IC5
Discharge
50C
Display
2.8" LCD
Hard Case
Yes
Input Voltage
100 - 240V AC
Integrated Balancing
Yes - Internal Balancer & Internal Adapter
Low Input Voltage Protection
Yes
Material
Hard Case
Maximum Burst Discharge Rate
20A
Maximum Charge Rate
15 or more
Maximum Continuous Discharge Rate
1.5A
Normal/Standard Charge Rate
0.1 - 20.0A
Number of Cells
2S
Number of Output Ports
2
Output
2 x 200W, or 380W on one channel
Output Connector
IC3, IC5
Over Current Protection
Yes
PC Connectivity
Yes
Peak Detection
Yes
Power (watts)
200 - 399W
Power Source
AC
Product Application
Surface
Product Height
4.13" (105 mm)
Product Length
5.7" (145 mm)
Product Weight
300g to 399g
Product Width
5.67" (144 mm)
Programmable
Yes
Prop 65
Prop 65 Warning Icon  California Residents Prop 65 WARNINGS.
Reverse Polarity Protection
Yes
Roar Approved
No
Safety Timer
Yes
Selectable Charge Rate
Yes
Short Circuit Protection
Yes
Smart Technology
Yes
Software Updates
Yes
Technology
Smart
Thermal Protection
Yes
USB Power out
Yes
Voltage Meter
Yes
