Discontinued

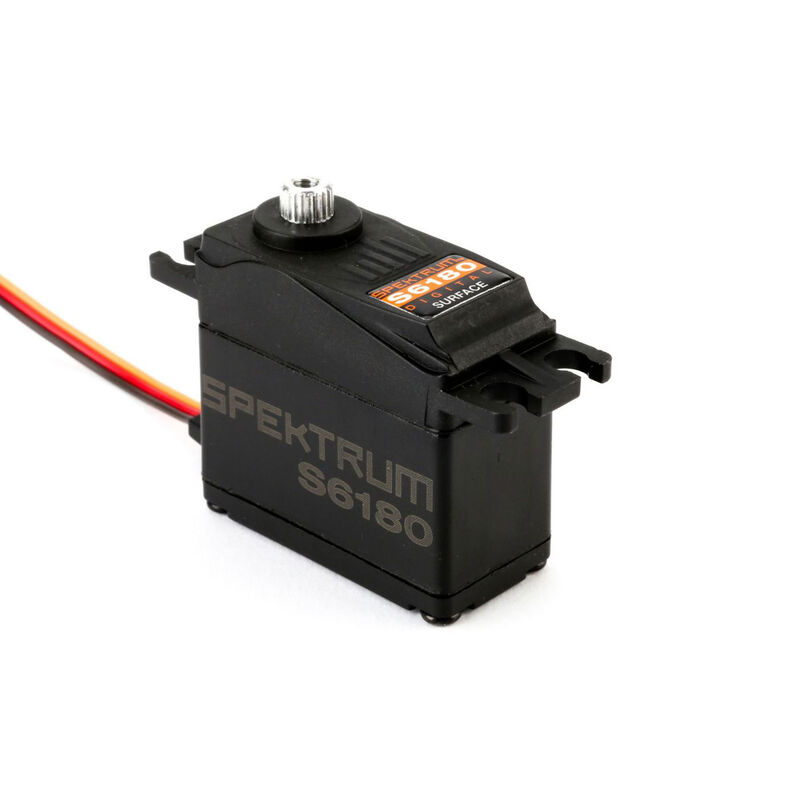

S6180 Standard Digital Metal Gear Surface Servo

Item No. SPMSS6180
4.4 out of 5 Customer Rating

Key Features

  • 100 oz-in (7.2kg-cm) of torque at 6 V provides impressive performance in demanding 1/10th scale applications
  • Fast response of 0.14 sec/60 degrees at 6V
  • Waterproof case design protects electronic components
  • Dual ball bearings provide less resistance for higher performance and longer life
  • Durable and rugged all metal gear train

Overview

The S6180 servo combines an impressive 100 oz-in of torque at 0.14 sec/60 degrees with a rugged brass-metal gear train. This performance, along with the smooth precision of its dual ball bearing output shaft and the waterproof case design make it the ultimate upgrade servo for ready-to-run 1/10-scale cars and trucks.

PRODUCT SPECS

Bearing
Dual
Bushing Or Bearing
Bearing
Gear Type
Metal
Maximum Servo Torque
80 oz-in (5.8 kg-cm) @ 4.8V; 100 oz-in (7.2 kg-cm) @ 6.0V
Programmable
No
Servo Operating Voltage
4.8 - 6.0V
Servo Size Category
Standard
Servo Type
Digital
