Item No. SPMXSM5600
4.2 out of 5 Customer Rating
$249.99
Earn Full Throttle Rewards With Every Purchase. Learn More.
Complete Your Product

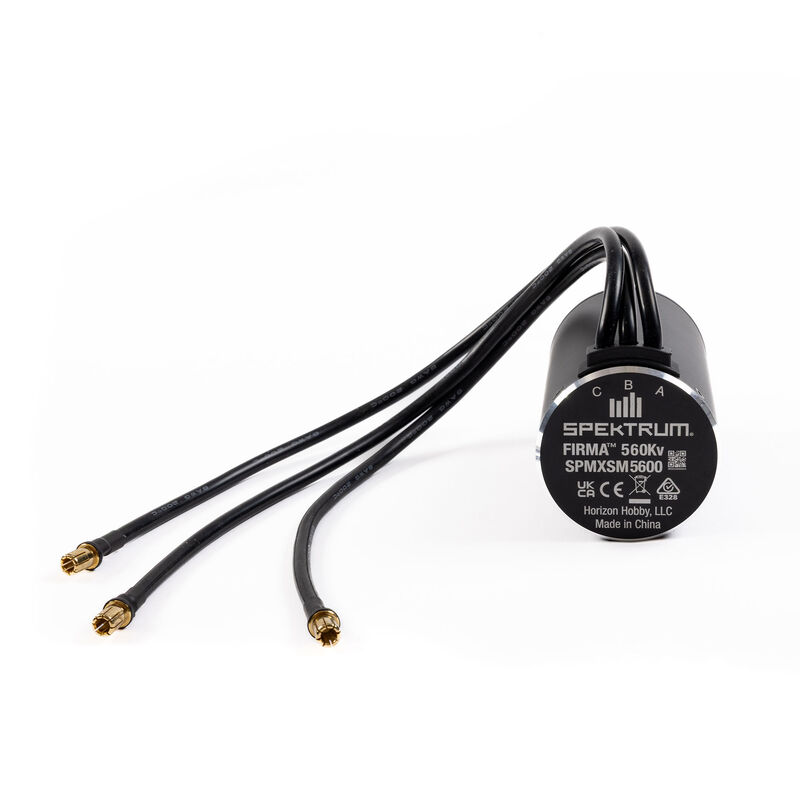

The Firma 560Kv brushless motor is the perfect pairing for the 5IVE-TE 3.0 1/5 Electric 4WD Desert Truck RTR. It features a low-cog 4-pole rotor design, CNC machined aluminum housing, insulated high-purity copper windings, a high-quality alloy steel output shaft, and precision bearings for durability and smooth rotation.

(1) Firma 70120 560Kv Brushless Motor, Smooth Can: 8mm

New 560kv smooth can motor

Compatible with SPMXSMH3 Heatsink

Motor dimensions are 66.5mm x 120mm

QuickLinks

icon-pdf-download MANUALS & SUPPORT

PRODUCT SPECS

Application
1/5th Scale Off Road Vehicle
Connector Type
8mm Bullet
Maximum Continuous Current
250A
Motor Size
70120
Motor Type
Brushless
Number of Poles
4
Outer Diameter
2.61" (66 mm)
Product Length
4.72" (120 mm)
Product Weight
2245g
RPM/Volt (Kv)
560Kv
Shaft Diameter
0.314" (8 mm)
Shaft Length
1.18" (30 mm)
Voltage
48V
