Firma 100A Brushless Smart ESC / 6500Kv Sensorless Motor Combo: No-Prep
(1) Spektrum Firma 100A Brushless ESC
(1) Spektrum Firma 6500KV Brushless Motor
(1) Sticker Sheet and Mounting Tape
(1) Product Manual
Motor and ESC Combo: Easy completion item for RC Drag Racers
Geared for Competition: Specifically sourced for Stock Class and Pro Class 2S Drag Cars
Program via Transmitter: Proprietary Text Gen Programming Allows for programming the ESC from Transmitter
Spektrum™ Surface Receiver
2S LiPo Battery with IC5 or EC5 Connector
Spektrum Transmitter
QuickLinks
MANUALS & SUPPORTProduct Features
- Smart all-in-one telemetry
- High RPM Performance Motor and ESC
- Fast, powerful 32-bit ARM M4 processor
- Waterproof System
- Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Programming from Transmitter via Text Gen Telemetry
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Aluminum heat sink for high efficiency
- Includes Optional Cooling fan
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Product Overview
The Spektrum Firma Sensored Smart ESC System is specifically sourced to be used with 10th scale Drag and Speed Run models running 2S LiPo power. Featuring advanced Smart connectivity that reports valuable telemetry data without any extra accessories.
This system is a complete ESC and motor package that includes a Sensorless 6500kv brushless motor and the Firma 100 Amp Smart ESC, providing a Smart solution for your 1/10 Drag car kits and upgrades.
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Video Overview
INCLUDES HIGH RPM FIRMA SENSORLESS 6500KV BRUSHLESS MOTOR
The Firma 6500Kv brushless motor features a large 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled 4mm gold plated bullet connectors.
PRETUNED FOR DRAG RACING SETUPS
Drop in and get started quickly and easily on most Drag kit and RTR models such as the Losi ™ 22S No Prep Drag Car Roller. And with the advantage of Spektrum Smart Technology, drivers can use the real-time telemetry data to better tune their setup for faster runs.

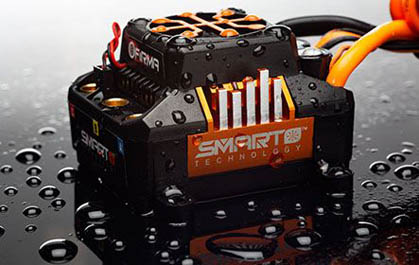

WATERPROOF
The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

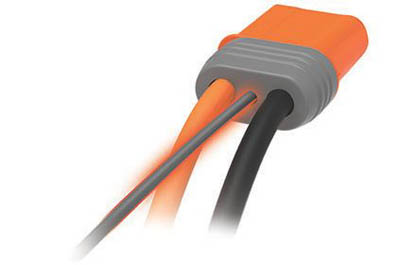

ONE-WIRE TELEMETRY
No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.* *See compatibility chart for more information.
SMART TECHNOLOGY BATTERY DATA
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery capacity used and remaining, individual cell voltage and more!

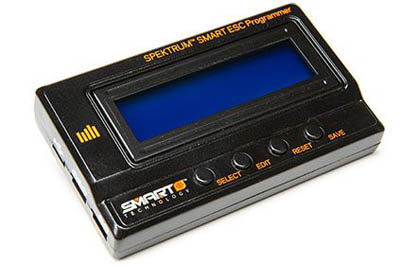

MULTIPLE PROGRAMMING OPTIONS
Multiple programming options are available. Using the Smart Firma™ ESC Programming Box, you can easily change settings on the trail to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available. And for those with a Text Gen capable, programming and adjustment of ESC settings can be performed, right from your Spektrum transmitter, no additional modules or wires needed!
PROGRAM FROM YOUR SPEKTRUM TRANSMITTER
With the latest models of Spektrum computer transmitters, drivers can take advantage of the Firma Prog text gen menu. This allows you to adjust any ESC setting or parameter right from your transmitter, on the trail, no programming box or Bluetooth interface required!
