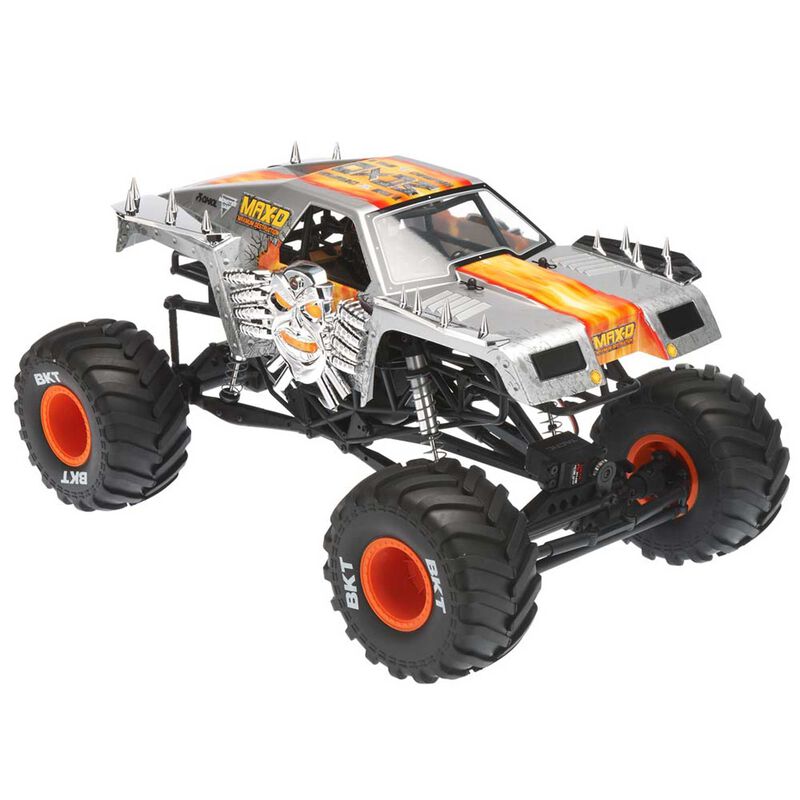

1 10 SMT10 MAX-D Monster Jam Truck 4WD RTR

Item No. AXID9057
3.8 out of 5 Customer Rating

Key Features

  • Chassis: SMT10 tube frame with many pivot points for suspension tuning, easy battery access at rear, adjustable battery tray accomodates most standard 2S and 3S LiPo batteries
  • Drive: Four wheel straight axle with Wild Boar HD driveshafts, larger diameter crosspin for added strength, new center splined slider with added material to reduce flex and fatigue, heavy duty front C-hubs
  • Radio: Tactic TTX300 with user programmable 3rd channel, steering rate adjustment, 70/30 throttle setting, and 3-channel TR325 receiver, Tactic TSX45 metal gear steering servo with 151oz-in torque & dual ball bearings
  • ESC: Axial AE-5 waterproof, drag brake, star plug, ESC switches between LiPo and NiMH battery types with a simple jumper
  • Motor: Axial brush equipped 27 turn
  • Transmission: AX10, updated dual pad slipper system with 32P gearing new slipper design uses a pad on each side of spur gear for added surface area, three gear layout, metal motor plate, 56T Spur/11T Pinion RTR gearing for 3S LiPo operation includes 16T Pinion for 2S LiPo operation
  • Wheels: 2.2" (56mm) diameter nylon construction, 12mm hex
  • Tires: 2.2" BKT purpose built to handle the rigors of Monster Jam Truck Racing
  • Shocks: Oil-filled aluminum body, multiple mounting positions
  • Body: .040" (1mm) thick polycarbonate Max-D replica, scale interior, detailed chrome character face, chrome fender flares with spikes, white helmet set and optional "snap in" chrome spikes.
  • Steering: Heavy duty tie rod, drag link, and simulated scale hydraulic ram steering link
  • Rear Suspension: Trailing arm 4-link, high-strength composite AR60 OCP axle, axle tubes reinforced with boxed-in axle truss, off-center pumpkin design, updated steering knuckles for dual shear, also eliminates secondary bolt plate, updated diff cover and servo mount, rear swaybar
Needed to Complete
  • 2S or 3S LiPo pack or NiMH pack
  • Suitable Charger
  • AA Batteries: Four for transmitter
  • Charging Bag if using LiPo battery
  • Track equipment
What's in the box?
  • (1) Max-D Monster Jam Truck with Radio, Steering Servo, ESC, Motor, and Body
  • (1) User Manual

Specifications

    Vehicle

  • Length: 19" (483mm)
  • Width: 13.2" (335mm)
  • Height: 10.75" (273mm)
  • Wheelbase: 13.9" (353mm)
  • Ground Clearance: 2.9" (74mm)
  • Weight: 7.11lbs (3.22kg) estimated with electronics

    • Body

  • Length: 18.4" (467mm)
  • Width: 8.7" (221mm) at rear fender flares, widest point
  • Height: 4.4" (112mm)
