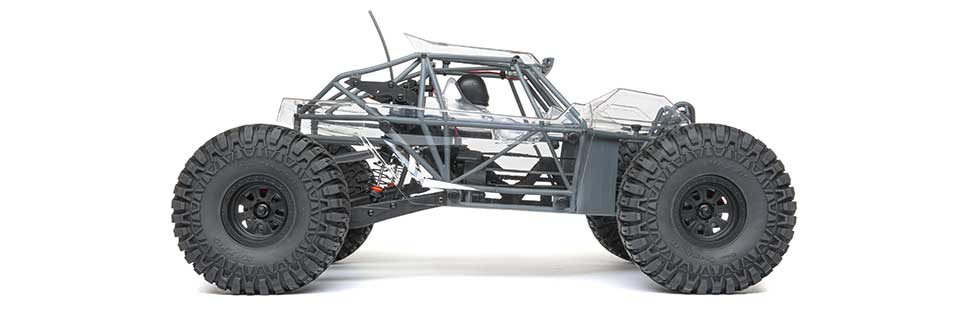

Rock Rey Kit

With the Losi® Rock Rey Kit, option parts come standard so you can customize the vehicle how you want. You have complete freedom to accessorize and hop up your vehicle to your liking. With a new roll cage that resembles full-scale rock racers, this basher is ready to go head-to-head with the best. Its new front-end geometry adds the needed handling for rock racing while taking advantage of the Baja Rey's rear-loading battery and bottom-loading motor. The Rock Rey is most at home in rocky terrain-the rougher the better. So go ahead let it rip.

Needed to Complete
  • Motor
  • Electronic Speed Control
  • Servo
  • Radio System
  • 7.4V 5000mAh 2S or 11.1V 5000mAh 3S LiPo Battery
  • Charger
  • Paint
  • Tools
  • Glue
What's in the box?
  • (1) Losi® Rock Rey Truck Kit
  • (1) Clear Body (with Headlight Receptors Installed)
  • (1) Servo Arm with Metal Inserts
  • (2) Adjustable Turnbuckles
  • (2) Aluminum Upper Links
  • (1) Aluminum Axle Housing Upper Track Rod Mount
  • (1) 30 Weight Shock oil
  • (4) Wheels and Tires
  • (1) 10T 1.0 Module Pinion Gear
  • (1) User Manual
Rock Rey Kit

Build It Your Way

You call the shots and build the Rock Rey any way you want.

Build It Your Way

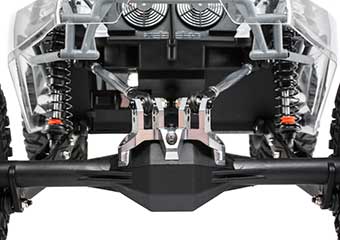

4WD Independent Front Suspension with Solid 4 Link Rear Axle

Scale looks and amazing performance over rough terrain.

4WD Independent Front Suspension with Solid 4 Link Rear Axle

Option Parts Included

Kit includes aluminum rear upper links and upper rod track mount, as well as adjustable camber links and turnbuckles for steering.

Option Parts Included

Rear-Loading Battery Door

Quick battery changes-no body clips need to be removed whatsoever.

Rear-Loading Battery Door

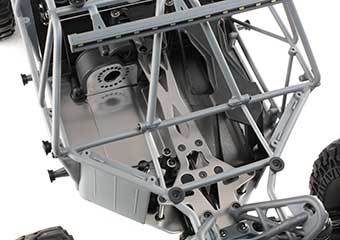

Aluminum Chassis and Injection Molded Composite Roll Cage

These enhance the Rock Rey’s durability and scale appearance.

Aluminum Chassis and Injection Molded Composite Roll Cage

LED Light Bar

Drive into the night with the 12 LED light bar, which is powered by the receiver.

LED Light Bar

Metal Inserted Servo Horns

Three metal servo horn inserts support 23, 24 and 25 tooth spline servos so you can use any servo you want and provide excellent durability.

Metal Inserted Servo Horns

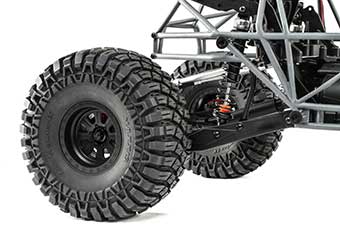

2.2" x 5.8" Maxxis Creepy Crawler LT Tires

These enhance the scale looks and provide aggressive tread for all-terrain applications.

2.2

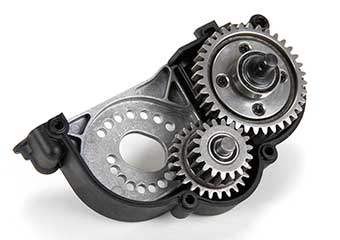

HD Metal Gear Transmission

The HD metal gear transmission provides a robust drivetrain.

HD Metal Gear Transmission

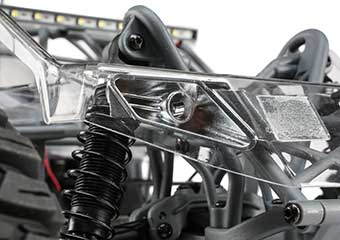

Headlight Receptors

The kit includes headlight receptors already in place-all you need to do is add your own LEDs.

Headlight Receptors

Preset Motor Plate

Different pinion choices offer precise and easy mesh settings.

Preset Motor Plate

Rock Rey Kit

PRODUCT SPECS

Approximate Assembly Time
10-15 Hours
Ball Bearings
Yes
Battery
2S 5000mAh LiPo with EC3? Connectors (Sold Separately)
Body
Clear, Polycarbonate
Brakes
Electronic
Charger
(Sold Separately)
Chassis
3.5mm Plate, 6061-T6 Aluminum
Completion Level
Kit
Differential
Locked Rear, Gear Diff Front and Rear-Sealed
Drivetrain
4WD
Front Track
12.75 in (323.8mm)
Gear Pitch
1.0 Module
Ground Clearance
2.2 in (55.9mm) at rear diff
Inner Tire / Outer Wheel Diameter
2.2 in (55.9mm)
Motor Size
550 (Sold Separately)
Motor Type
Brushless
Outer Diameter
5.75 in (146mm)
Pinion
10T
Power Type
Electric
Product Height
8.75 in (222.3mm)
Product Length
20.75 in (527mm)
Product Weight
6.55 lb (3.0kg)
Product Width
12.75 in (323.8mm)
Radio
(Sold Separately)
Rear Track
12.75 in (323.8mm)
Scale
1/10
Sensored
No
Servos
Not Included
Shock Type
Oil-Filled/Coil-Over Spring
Speed Control
(Sold Separately)
Suspension
Independent front/4-Link Rear
Tire Tread
Maxxis Creeper Crawler LT
Track Surface
12.75 in (323.8mm)
Vehicle Type
Rock Racer
Wheel Hex Size
12mm
Wheel Type
2.2 in (55.9mm) Glue-Type
Wheel Width
1.6 in (40.75mm)
Wheelbase
15.0 in (381mm)
